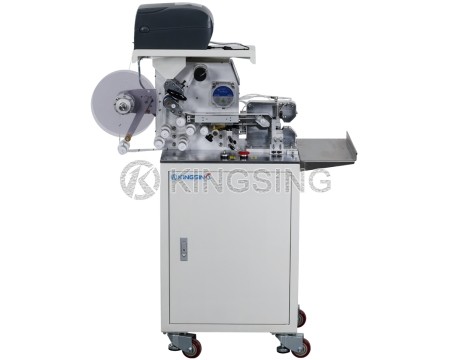

Multi-station Wire Labeling Machine

  • Model:KS-L304F
  • Brand:KINGSING
  • Voltage:220V (Can be customized)
  • Function:
  • Price:

This is a customized wire harness half-folding labeling machine. It has 4 built-in labeling mechanisms, so 4 different labels can be mounted on the machine at the same time. Through the program settings, 4 labels of different sizes can be attached to the wires in sequence. Therefore, it's especially suitable for situations where multiple different labels need to be attached to the same batch of wires.

Sometimes it requires to put multiple different labels on the same wire, and some wire harnesses have multiple branches, each branch needs to be labeled with one label. This machine is just designed to deal with these situations.

KINGSING
Download: (1)

Label Width Range: 5~45mm (Can be customized)

Label Length Range: 40~180mm (Can be customized)

Max. Label Roll OD: 240mm

Labeling Accuracy: ±0.2mm

Capacity: 1500~3600pcs/hour

Air Pressure: 0.4~0.6Mpa

Power Rating: 250W

Power Supply: 220V 50/60Hz

Net. Weight: 86kg

Dimension: 580×680×1000mm

Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
