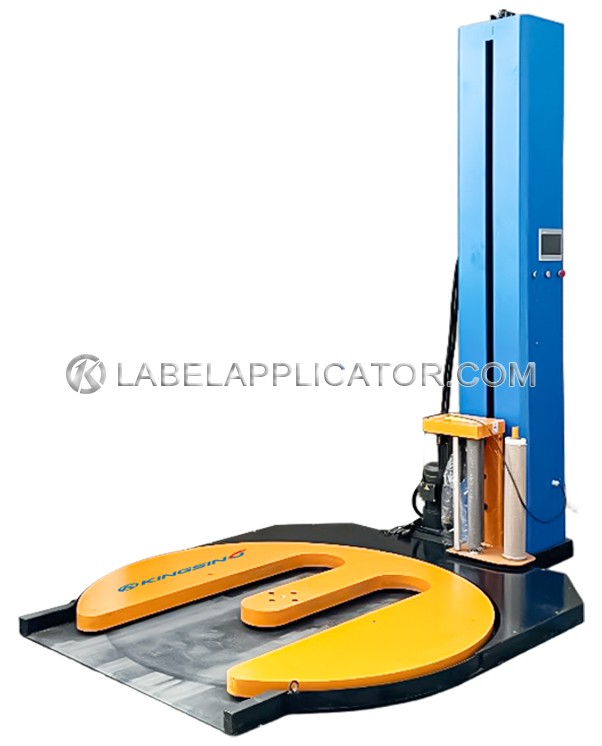

M-Pattern Film Wrapping Machine

  • Model:KS-FM Series
  • Brand:KINGSING
  • Voltage:220V (Can be customized)
  • Function:
  • Price:

This advanced stretch film wrapping machine is the ultimate solution for industrial packaging needs. Designed for modern warehouses and manufacturing facilities, it features an innovative open M-shaped forklift slot that allows effortless manual forklift handling without the need for ramps or electric forklifts. This design enhances operational efficiency, especially in tight spaces or high-frequency environments.

Equipped with a cutting-edge PLC intelligent control system and photoelectric sensing technology, this machine offers seamless and user-friendly operation. It supports multi-layer wrapping, fully customizable programs, and soft start/stop functions to minimize manual effort while maximizing speed and precision. With a pre-stretch technology that can reach up to 250%, it ensures cost-effective film usage and provides exceptional tension to secure loads and prevent shifting during transit.

Perfect for logistics, manufacturing, and e-commerce sectors, this industrial pallet wrapper can wrap 20 to 40 pallets per hour, making it an ideal choice for businesses with high-volume shipping requirements. Its durable construction ensures stability, safety, and superior load protection, making it a crucial asset for automating packaging processes and boosting productivity.

Download: (1)
ModelKS-FM1650KS-FM1800
Turntable Diameter1650mm1800mm
Overall WeightApprox. 600kgApprox. 700kg
Overall DimensionsApprox. 2600×1650×2650mmApprox. 2800×1800×2650mm
Packaging Height2200mm (max)
Turntable Height80mm
Load CapacityApprox. 800kg
Power Rating1.5kW
Power SupplySingle-phase 220V/50Hz
Turntable Speed0–12 rpm
Packaging MaterialLLDPE Stretch Film
Thickness17–35μm
Width500mm
Film Roll Core76mm
Maximum Film Roll Diameter250mm
  • Optional electric top press available to ensure stability for light loads during wrapping.
