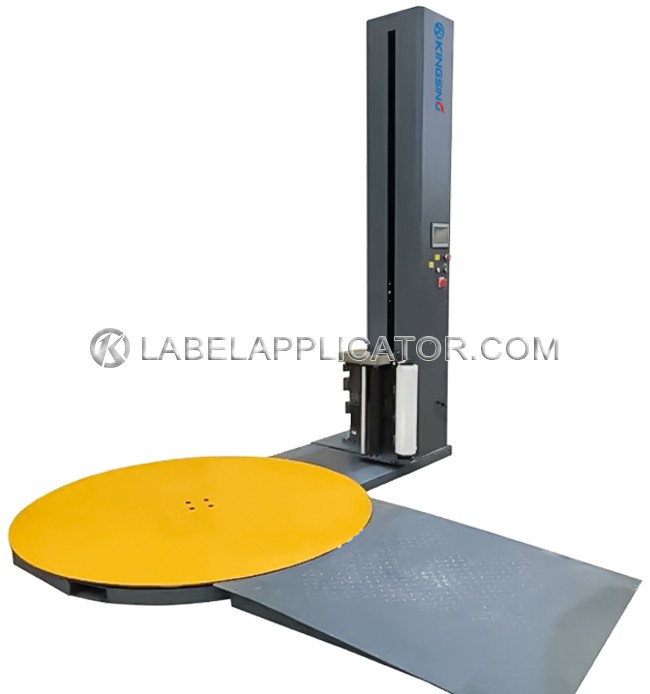

Automatic Stretch Film Wrapping Machine

  • Model:KS-FW Series
  • Brand:KINGSING
  • Voltage:220V (Can be customized)
  • Function:Film Wrapping
  • Price:

The Automatic Stretch Film Wrapping Machine is an advanced packaging solution designed to enhance productivity, reduce manual labor, and ensure secure goods protection during storage and transportation. It is ideal for medium to high-volume facilities, streamlining the end-of-line packaging process for quick, reliable, and cost-effective operations.

  1. Highly Automated Operation: The machine utilizes a high-power motor-driven rotating platform, allowing goods to rotate automatically during the film wrapping process. The film can also be automatically raised and lowered, completing the wrapping task efficiently with minimal operator intervention.

  2. Automatic Film Cutting: After the wrapping is complete, the machine automatically cuts the film, significantly improving work efficiency and reducing the risk of errors or inconsistencies in the packaging process.

  3. Multiple Optional Functional Modules: This machine supports a range of customizable options, including:

    • Electronic Weighing: Provides accurate weight measurement of the load for quality control and logistics management.

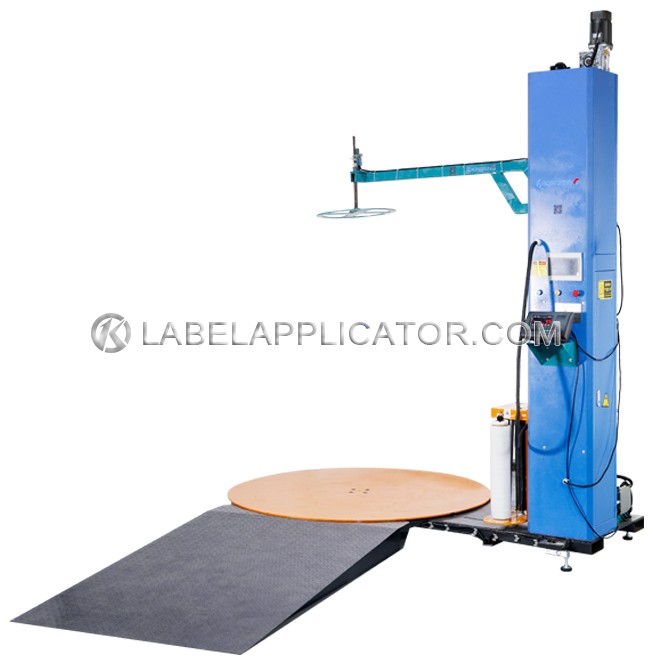

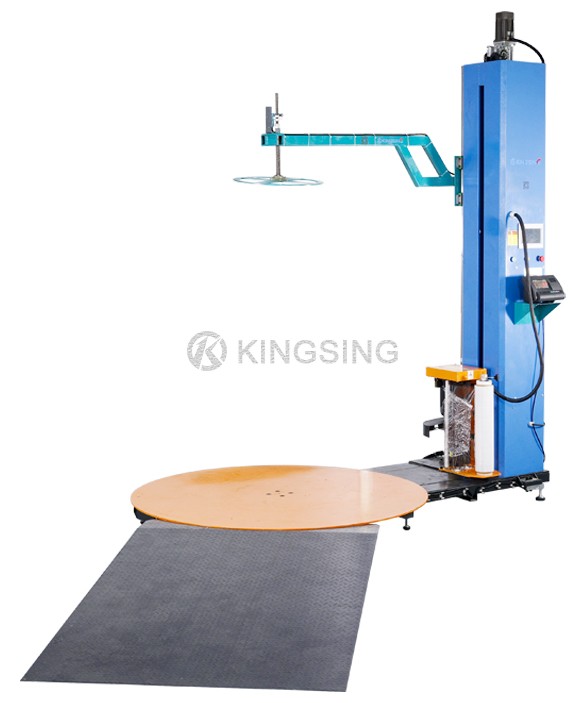

    • Electric Top Pressing: Ensures stability of lightweight loads during the wrapping process, preventing displacement and maintaining uniform packaging quality.

    • Slope (Ramp): Facilitates easy loading of goods using hand-operated forklifts, improving operational efficiency and user convenience.

  4. Easy to Operate and Maintain: With user-friendly controls, intuitive interfaces, and durable construction, the machine is easy to operate and maintain, reducing downtime and operational costs.

Download: (1) (2) (3)
ModelTurntable DiameterMachine WeightMachine Dimensions
KS-FW12001200mmApprox. 350kg2200×1200×2650mm
KS-FW15001500mmApprox. 380kg2450×1500×2650mm
KS-FW16501650mmApprox. 400kg2600×1650×2650mm
KS-FW18001800mmApprox. 450kg2800×1800×2650mm
KS-FW20002000mmApprox. 600kg3000×2000×2650mm
KS-FW22002200mmApprox. 650kg3200×2200×2650mm
KS-FW24002400mmApprox. 750kg3400×2400×2650mm
  • Max Wrapping Height: 2200 mm

  • Turntable Height: 80 mm

  • Load Capacity: Approx. 2 tons (Optional 3-ton models available)

  • Power: 1.5 kW

  • Voltage: Single Phase 220V / 50Hz

  • Turntable Speed: 0–12 rpm

  • Optional Functions: Automatic Weighing, Top Platen, Ramp
