Top-Covering Pallet Stretch Wrapping Machine

  • Model:KS-FT100
  • Brand:KINGSING
  • Voltage:220V (Can be customized)
  • Function:
  • Price:

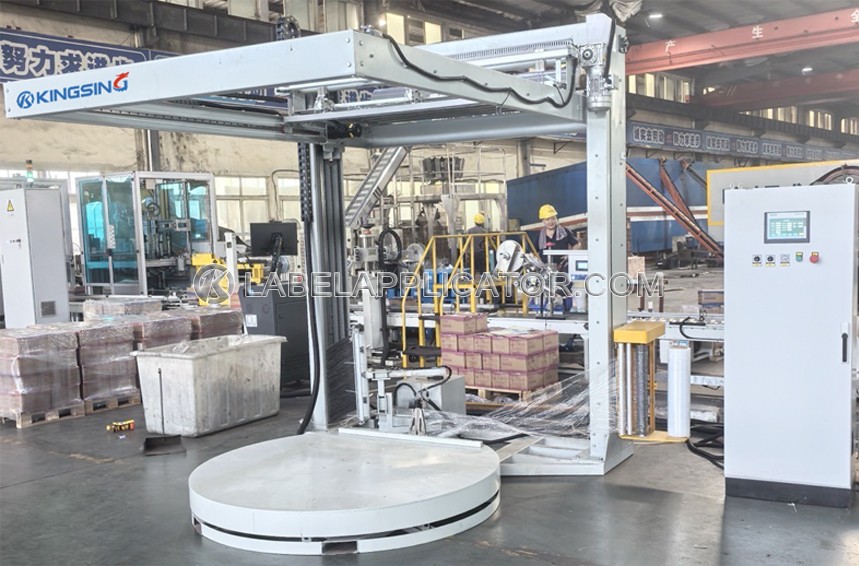

Top-Covering Pallet Stretch Wrapping Machine is an advanced packaging solution designed to automatically place a stretch film sheet over the top of palletized goods before wrapping the sides. This feature provides comprehensive coverage, including the upper edges and top surface, offering enhanced protection against dust, moisture, and external damage during transportation or storage.

This machine is widely used for unitizing large-volume goods packed in cartons or loaded on pallets, especially in industries such as automotive parts, glassware, hardware tools, electronics, paper, ceramics, chemicals, food, beverages, and construction materials. It helps increase logistics efficiency, reduce handling damage, and lower packaging costs.

Once the pallet is positioned on the turntable, the machine automatically applies a top film sheet, followed by high-speed wrapping around the product with stretch film. The system is equipped with frequency-controlled motors to allow adjustable turntable speed and lift speed, ensuring smooth and uniform wrapping across different load sizes.

The PLC-controlled system with a user-friendly text panel makes the machine easy to operate and highly reliable. Optional features such as weighing, reinforced rotation support, or extended turntable size are available to meet various packaging needs.

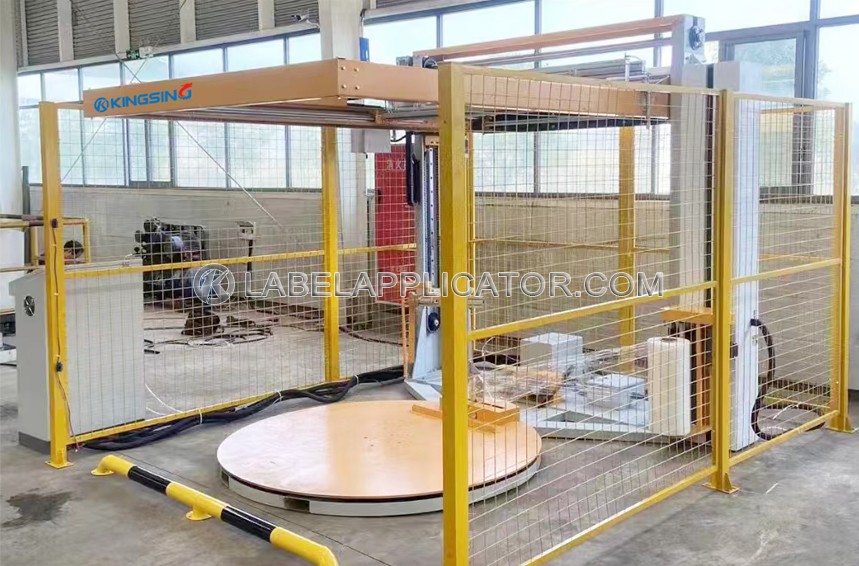

For enhanced workplace safety, the machine can be optionally equipped with a protective safety fence. This enclosure helps prevent accidental access to the wrapping zone during operation, ensuring compliance with industrial safety standards and improving overall operator protection.

Download: (1)
ItemsSpecification
Pallet Size900~1200mm × 900~1200mm
Wrapping Height500~2000mm
Packing Speed20~40 pallets/hour
Turntable Speed0~12 RPM (frequency adjustable)
Turntable SizeDiameter 1800mm, Height 85mm
Turntable Load Capacity2000kg
Film Frame TypePre-stretch film carriage
Lifting StructureDouble-chain structure, lift speed adjustable
Control SystemPLC programmable control
Power Supply3.7kW / 380V / 50Hz
Machine Weight900kg
Overall Dimensions2900 × 2900 × 3500mm
Optional FeaturesRamp, weighing module, reinforced bearing
Custom FunctionsEnlarged turntable, lifting, weighing, rotary support, door-type film carriage
