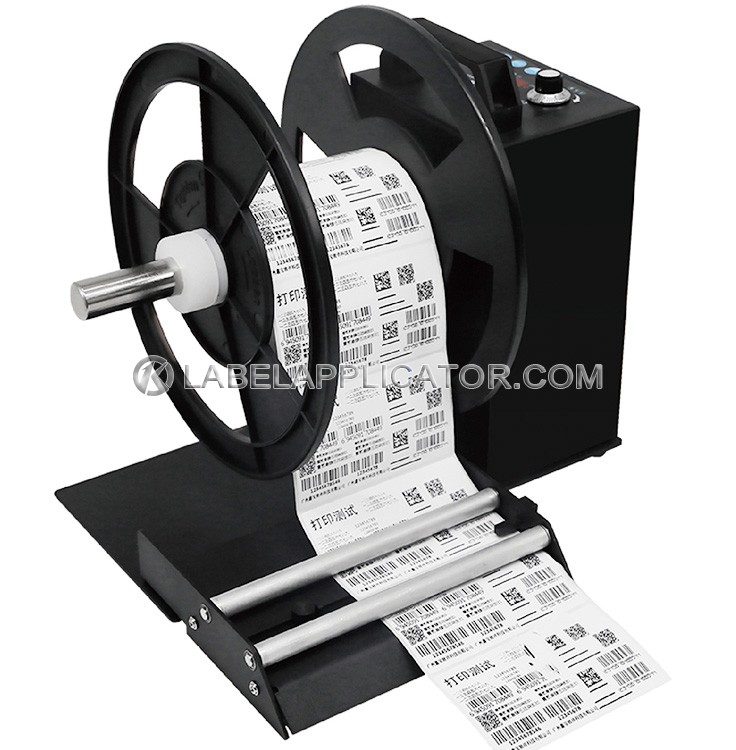

Automatic Label Rewinder

  • Model:KS-L902
  • Brand:KINGSING
  • Voltage:220V (Can be customized)
  • Function:
  • Price:

The label rewinder is often used to work with barcode label printers to automatically wind the printed labels into rolls, and it can also be used as a label prefeeder. It has a built-in label tension sensor, which can work synchronously with any brand of barcode label printers. It can automatically start when printing labels and stop automatically when winding is completed.

Use a label rewinder to keep your desk tidy, and printed labels are automatically recycled into rolls. If a barcode printer is equipped with 2 rewinders, one can be used for prefeeder and the other for rewinder.

KINGSINGKINGSINGKINGSING


ModelKS-L902AKS-L902BKS-L902CKS-L902DKS-L902E
Max. Label Width90mm120mm150mm180mm230mm
Rewind Speed1~10"/s1~15"/s
Max. Roll Diameter230mm360mm
Inner Core Size1" (24~26mm), 1.5" (38~40mm), 3" (76~78mm)
FunctionIt can be used as label pre-feeder & label rewinder.
Rewind DirectionForward and reverse
Power Supply100~240V 50/60Hz
Net. Weight4kg5kg6.5kg7.5kg14kg
Dimension240×230×260mm276×230×260mm306×230×278mm336×230×278mm453×360×420mm
