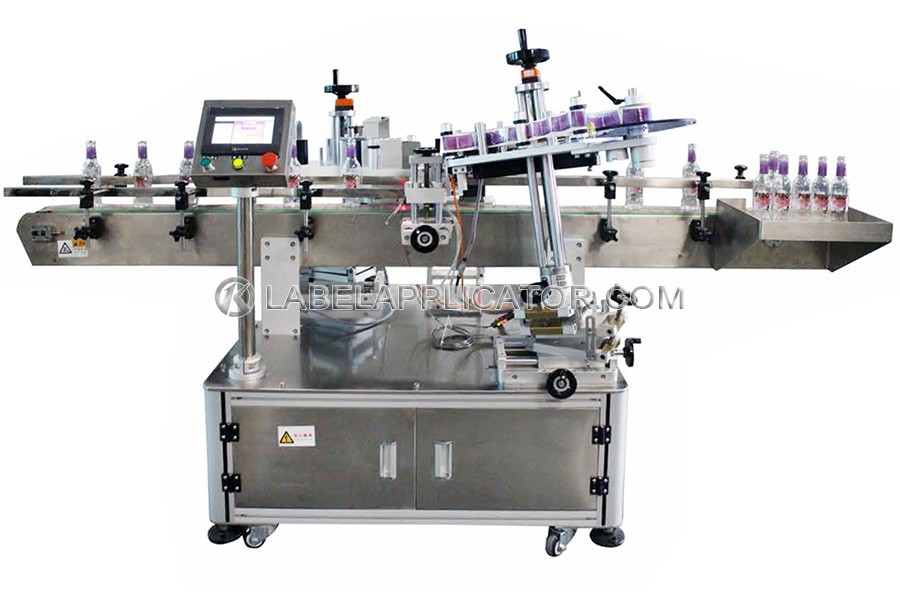

Cocktail Three Label Labeling Machine

  • Model:KS-L204C
  • Brand:KINGSING
  • Voltage:220V (Can be customized)
  • Function:
  • Price:

This machine is specially designed for wine bottle labeling, which can realize labeling on the front and back of the bottle body and bottle neck labeling at one time. In addition, a thermal transfer printer or inkjet printer can be selected to print the production date and batch number on the label.

The same equipment can realize single-label labeling and double-label labeling, and the double-label spacing can be flexibly adjusted. The optional circumferential positioning detection device can realize the function of positioning and labeling on the circumferential surface;


Download: (1)

Label Width Range: 20~160mm

Label Length Range: 20~285mm

Available Product OD: Φ25~90mm

Available Product Height: 25~300mm

Max. Label Roll OD: Φ280mm

Labelling Accuracy: ±1mm

Capacity: 25~55pcs/min

Conveyor Speed: 5~18m/min

Air Pressure: 0.4~0.6Mpa

Power Rating: 570W

Power Supply: 220V 50/60Hz

Net. Weight: 185kg

Dimension: 1950×1200×1530mm

Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
